CPL Short-cycle Hot Press Line Details

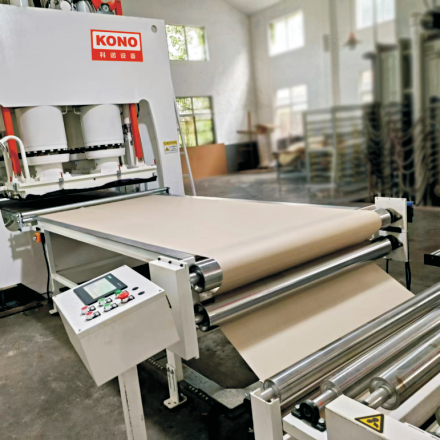

CPL Short-cycle Hot Press Line
The CPL short-cycle hot press line is widely used in melamine veneer of coiled materials (kraft paper, non-woven fabrics, etc.), and can be used as a secondary decorative layer after lamination.


CPL Short-cycle Hot Press Line Technical Parameter

Model HPD1600T4X8 HPD2000T4X9 HPD2400T4X10
Norminal Pressure (KN) 16000 20000 24000
Unit Pressure (kg/cm2) 53.8 59.6 64
Main Oil Cylinder (mmxpcs) Φ320x8 Φ320x10 Φ360x10
Lift Oil Cylinder (mmxpcs) Φ63x4 Φ80x4 Φ80x4
Hot Plate Size (mm) 1400x2600 1400x2900 1400x3200
Hot Plate Thickness (mm) 140/100 145/100 155/100
Thickness of Frame (mmxpcs) 40x8 40x10 50x10
Heat Consumption (kcal/h) 200,000 200,000 200,000
Pumping Motor Power (kW) 25 25 25
OverallDimension (m) 2.4x2.6x2.9 2.6x2.9x3.0 2.6x3.2x3.0

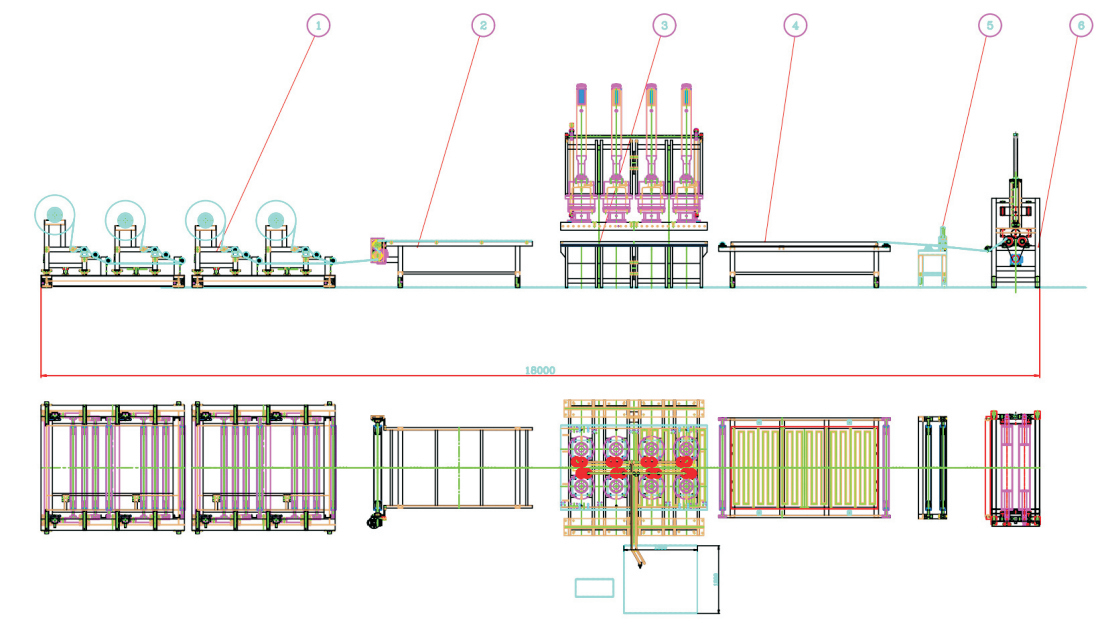

CPL Short-cycle Hot Press Line Layout Plan

CPL Short-cycle Hot Press Line Layout Plan

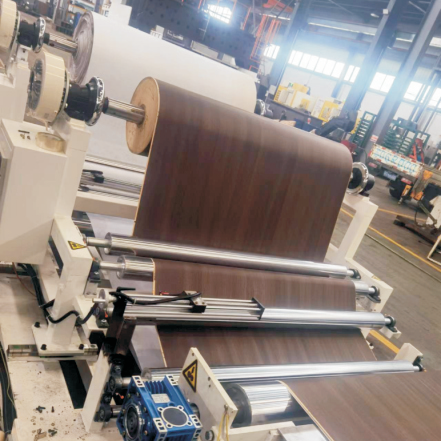

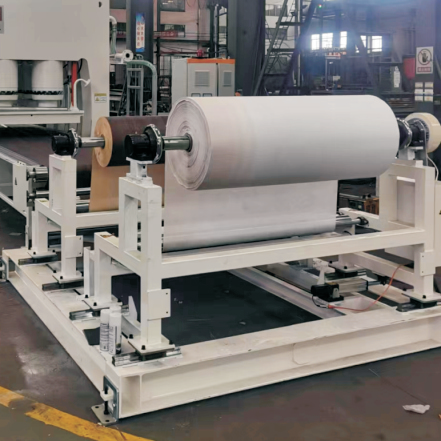

1. Four-station unwinding machine

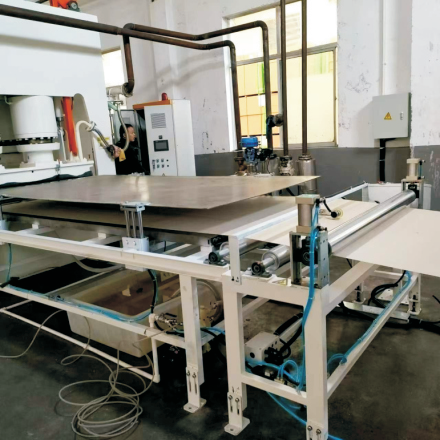

2. Paving table
3. 1600T-4X8 Hot press machine

4. Plate cooler

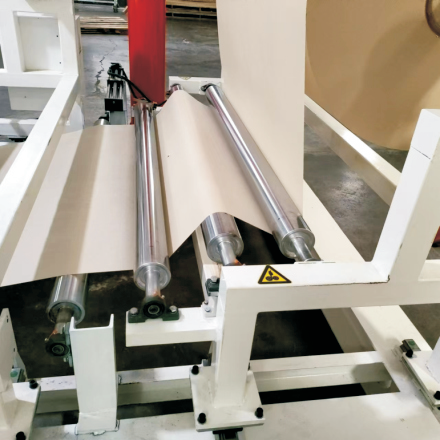

5. Deflection correcting machine
6. Paper rolling machine
