LVT Flooring Hot Press Line Details

The LVT Flooring Hot Press Line is a specialized production line designed for the manufacturing of Luxury Vinyl Tile (LVT) flooring. It uses high temperature and pressure to bond multiple layers of materials, ensuring durability, dimensional stability, and a high-quality surface finish. This press line is ideal for producing LVT flooring with realistic textures, enhanced wear resistance, and superior performance for residential and commercial applications.


LVT Flooring Hot Press Line Technical Parameter

Model HPD800T-4*4-12 Layer HPD900T-4*5-12 Layer HPD1200T-4*6-18 Layer
Rated pressure 8000 9000 12000
Unit pressure 53.8 48.4 53.8
Main cylinder parameters Φ320*960*4 Φ320*960*4 Φ320*6
Lifting cylinder parameters Φ100*960*2 Φ100*960*2
Hot Plate Size 1400*1400 1400*1650 1400*2000
Hot Plate Thickness 55 55 55
Main frame thickness 30 40 50
Heat Consumption 150,000 180,000 300,000
Power of motor ≈22 ≈22 ≈42
Equipment size Optional Optional Optional

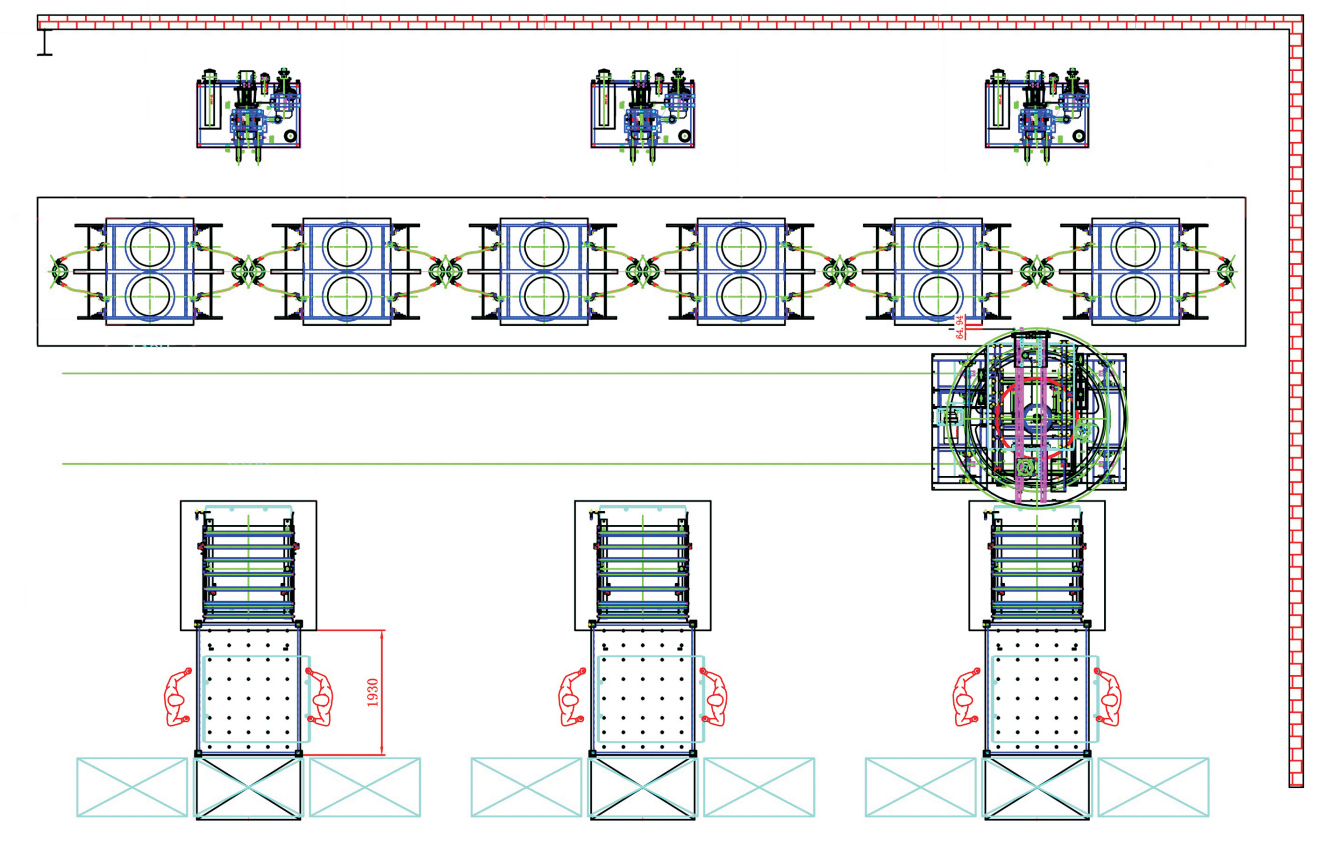

LVT Flooring Hot Press Line Layout Plan
